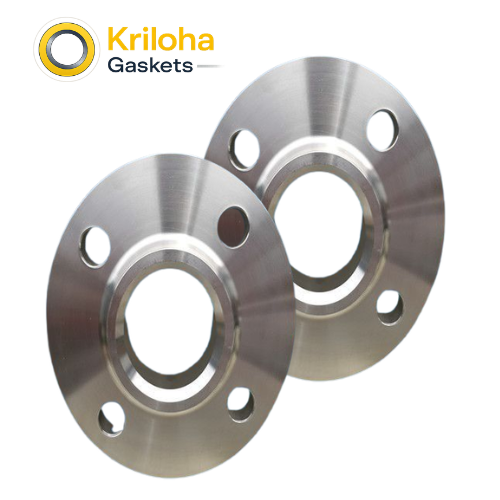

A105 Carbon Steel Plate Flat Face Pipe Slip On Flange Standard

At Kriloha Gaskets & Hardware, we recognize that mid-bore fluid distribution networks require components that seamlessly balance robust structural security with precise face geometric execution. Our ASTM A105 Forged Carbon Steel Slip-On Flat Face (SO-FF) Plate Flanges represent our engineered answer for “Crack-Free-Equipment-Mating” and “Space-Saving-Joint-Security” across primary utility arrays. As a leading manufacturer and supplier of integrated flow control interfaces and pipeline hardware, Kriloha utilizes automated multi-axis workflows to ensure that our forged plate configurations provide superior mechanical longevity compared to unpredictable cast alternatives.

The engineering of our flat face carbon steel program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. By forcing fully killed carbon steel billets through controlled hot-forging paths rather than relying on lower-cost casting alternatives, we eliminate internal gas pockets, voids, and structural micro-cracks. The refined metal grain structure smoothly traces the geometry of the flat plate ring, providing the component with an exceptional structural modulus. This allows it to withstand high bolt-torque demands across the standardized bolt circle without warping or undergoing structural relaxation over time. Sourcing our normalized ASTM A105 steel guarantees uniform hardness and exceptional impact toughness under continuous line stress. At Kriloha, we precision-machine the completely flat sealing surfaces on advanced CNC turning centers, ensuring absolute parallelism that prevents fluid bypass or blowout risks.

Manufacturing and provisioning these critical flow-control connection pieces involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Face Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules (such as Schedule 40 or Schedule 80 matching). By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior metallurgy and micro-tolerance engineering.

Primary Industrial Applications

Low-to-Medium Pressure Utilities: The industry-standard choice for primary factory utility lines distributing industrial raw water, cooling tower loops, non-potable water, and low-pressure compressed air networks.
Commercial HVAC & Water Infrastructure: Reliable connection points for commercial heating networks, water storage tank headers, municipal pump stations, and facility drainage manifolds.
Cast Iron Equipment Mating: Specifically engineered to securely bolt directly to flat face cast iron pumps, valves, strainers, and legacy equipment without risking mechanical component cracking.
Prefabricated Compact Skids: Low-profile joining interfaces preferred by equipment manufacturers for routing fluid loops inside tight, structurally constrained modular process frames.
Non-Corrosive Liquid & Gas Distribution: Highly cost-efficient connection elements for non-potable plumbing lines, fire sprinkler mains, and low-temperature environmental ventilation ducting.

Frequently Asked Questions (FAQs)

What is the technical advantage of choosing a Flat Face (FF) flange over a Raised Face (RF) flange?

A Flat Face (FF) flange is engineered primarily to be bolted to components made of cast iron, bronze, or brittle plastics (such as cast iron valves or pumps). When mating two flat faces together, the bolt-clamping force is distributed evenly across the entire surface. If a Raised Face (RF) steel flange is bolted to a flat face cast iron component, the concentrated force inside the bolt circle creates a bending moment that can easily crack or break the brittle cast iron body.

What is the structural difference between a standard Hubbed Slip-On flange and a Flat Plate flange?

A standard Hubbed Slip-On flange features an elevated collar neck or hub surrounding the center bore to help distribute mechanical line stress. A Flat Plate flange is completely flat and collarless across its entire thickness profile. This makes the plate flange significantly more compact, lightweight, and cost-effective for low-to-medium pressure utility layouts, though it has lower resistance to severe pipeline bending moments and heavy vibrations than a hubbed alternative.

What specific welding configuration is required to install an ASTM A105 Plate Slip-On flange?

A plate slip-on flange requires a standard double fillet weld configuration for a code-compliant installation:

One robust fillet weld around the exterior rear side where the pipe wall intersects the back of the flange plate.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent weld spatter or excessive heat from damaging the machined sealing surface.

Does ASTM A105 carbon steel require rust protection for storage and field installation?

Yes, carbon steel is highly vulnerable to atmospheric moisture and oxidation. To prevent rust formation before installation, Kriloha treats all carbon steel flanges with a protective layer of rust-preventative oil, an anti-rust black lacquer paint coating, or heavy hot-dip galvanization, depending on your project’s environmental storage requirements.

Are Material Test Reports (MTRs) provided by Kriloha for these carbon steel plate flanges?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (Carbon, Manganese, Silicon fractions), hardness values, yield/tensile strength data, heat treatment records, and explicit compliance with international industrial standards to guarantee complete code traceability.
