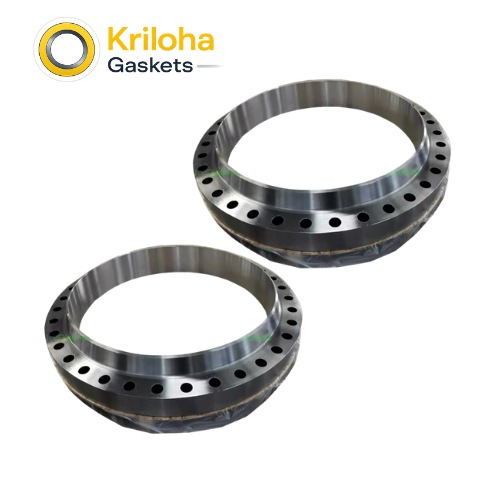

Ansi B16.47 Slip On Flange Forged Class 150 Carbon Steel Welding Flange

At Kriloha Gaskets & Hardware, we recognize that large-bore, heavy-utility fluid networks demand components that combine high structural stability with flawless dimensional execution. Our ASME B16.47 Class 150 Forged Carbon Steel Slip-On (SO) Flanges represent our engineered answer for “High-Load-Joint-Security” and “Deflection-Resistant-Flatness” across primary processing arrays. As a leading premier manufacturer and supplier of integrated flow control elements and heavy-duty pipeline hardware, Kriloha utilizes state-of-the-art vertical CNC turning centers and automated multi-axis drilling stations to turn massive raw forged metallurgy into exact drop-in structural components.

The engineering of our large-diameter slip-on program is founded on Microstructural Uniformity and Zero-Flexing-Integrity. Because these large-scale components (26″ to 60″) must handle massive fluid volumes and intense structural line loads, Kriloha completely bypasses lower-grade, unpredictable casting techniques. Instead, we utilize fully certified, high-density hot-forged steel stock. The forging process refines the internal grain matrix to cleanly trace the contour of the heavy ring and low-profile hub. This delivers the high structural modulus required to easily withstand massive bolt-clamping forces across the expanded bolt circle without bowing, warping, or undergoing structural relaxation over time. At Kriloha, we precision-machine the Raised Face (RF) sealing surfaces, adding controlled concentric phonographic micro-serrations ($R_a$ finish) that firmly anchor your chosen gasket sheet to eliminate fluid bypass or blowout risks.

Manufacturing and provisioning these massive flow-control connection pieces involves strict Volumetric Material Inspections, Ultrasonic Integrity Checking, and Strict Tolerance Calibration. We collaborate directly with your project engineering, quality assurance, and procurement teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules. By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior metallurgy and micro-tolerance engineering.

Primary Large-Bore Industrial Applications

Mainline Water Transmission & Intake Headers: High-volume connection joints for municipal raw water intake lines, primary water treatment headers, and large-diameter distribution aqueducts.
Oil & Gas Pipeline Gathering Manifolds: Ideal for midstream trunk lines, storage terminal manifolds, large-diameter gas distribution arrays, and refinery blending headers handling non-corrosive hydrocarbons.
Heavy Utility Cooling Tower Lines: Robust flanged connections for primary cooling water circulation loops, industrial condenser headers, and large-scale power plant water cooling circuits.
Industrial Exhaust Gas & Ducting Networks: Reliable space-saving interfaces for massive air filtration systems, industrial smoke stacks, flue gas desulfurization (FGD) plants, and waste heat recovery ducts.
Prefabricated Storage Tank & Vessel Connections: Large-bore mounting flanges used to smoothly link massive prefabricated process manifolds directly to low-pressure storage vessels, shell-and-tube heat exchangers, and filtration blocks.

Frequently Asked Questions (FAQs)

What is the difference between ASME B16.5 and ASME B16.47 standards?

ASME B16.5 is the standard specification for pipe flanges up to 24-inch Nominal Pipe Size (NPS).

ASME B16.47 is specifically created to cover large-diameter pipe flanges from 26-inch through 60-inch NPS. It provides the strict dimensional and pressure-temperature rating matrices necessary for managing the massive structural loads of large-scale infrastructure piping.

What is the structural distinction between Series A and Series B under the ASME B16.47 standard?

Series A (originally MSS SP-44): Specifies thicker, heavier flanges with larger and fewer bolt holes. They are generally preferred for piping runs that encounter higher external structural loads or heavy pipeline stress.

Series B (originally API 605): Specifies thinner, lighter flanges with smaller but more numerous bolt holes. They are typically chosen for space-restricted environments or compact piping layouts looking to optimize component weight and material cost.

What specific welding configuration is required to install an ASME B16.47 Slip-On flange?

A large-diameter slip-on flange requires a code-compliant double fillet weld configuration for proper field installation:

One robust fillet weld around the exterior where the low-profile hub neck meets the outer diameter of the large pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent heat or spatter from damaging the machined sealing surface.

How does Kriloha protect these massive carbon steel flanges against environmental rust?

Because carbon steel is vulnerable to atmospheric oxidation during shipping and storage, our factory applies multiple protective surface treatment options depending on your long-term storage and field installation requirements. Our standard finishes include a light yellow or black anti-rust lacquer, a rust-preventative oil finish, or heavy-duty hot-dip galvanization for outdoor or high-humidity installations.

Are Material Test Reports (MTRs) provided with these large-bore forged flanges?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every large-diameter shipment from our facility is accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (Carbon, Manganese, Silicon content), hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete code traceability.
