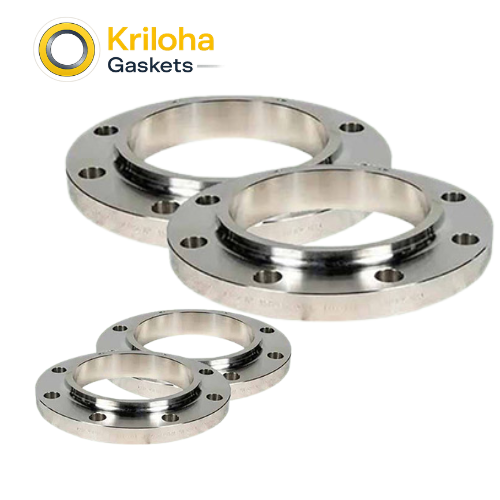

Ansi B16 5 Slip On Flanges Stainless Steel 304 Forged So Flanges

At Kriloha Gaskets & Hardware, we recognize that modern processing networks require components that combine standard pipeline security with specialized material versatility. Our ASME/ANSI B16.5 Grade 304 Stainless Steel Forged Slip-On (SO) Flanges represent our engineered answer for “High-Load-Joint-Security” and “Zero-Flexing-Integrity” across primary processing arrays. Operating from our high-precision automated manufacturing hubs, Kriloha bridges the gap between raw metallurgy and exact geometric perfection, ensuring every slip-on flange functions flawlessly alongside your high-performance sealing gaskets.

The engineering of our Grade 304 stainless slip-on program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. Rather than relying on lower-cost, unpredictable casting techniques that leave hidden internal air pockets or structural micro-cracks, Kriloha utilizes fully certified, hot-forging paths. By forcing the internal metal grain flow to trace the contour of the flange ring and low-profile hub, our components offer exceptional tensile strength. They comfortably withstand high bolt-torque loads across the ANSI bolt circle without warping or bowing over time. At Kriloha, we precision-machine the flat sealing surface on advanced CNC turning centers, finishing them with controlled phonographic serrations ($R_a$ finish) that mechanically grip the gasket matrix to resist blowout under sudden system pressure cycles.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Surface Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules (such as Schedule 10S or Schedule 40S matching). By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior metallurgy and micro-tolerance engineering.

Primary Industrial Applications

Hygienic Process Pipelines: Clean utility networks in food processing, beverage bottling lines, dairy plants, and cosmetics manufacturing where smooth, non-porous stainless steel prevents fluid contamination and survives clean-in-place (CIP) steam washdowns.
Moderate-Pressure Plant Utilities: Ideal for primary factory utility lines distributing high-pressure industrial water, cooling tower loops, factory compressed air networks, and inert gas loops.
Commercial HVAC & High-Purity Utilities: High-purity gas loops, industrial condenser systems, large-scale heating loops, and commercial building chilled water risers where lifetime rust resistance is mandatory.
Water Treatment & Pumping Infrastructure: Standard piping interfaces for high-head municipal water filtration networks, heavy drainage manifolds, sewage pumping stations, and irrigation headers.
Modular Industrial Process Skids: Compact structural mounting flanges used to securely link prefabricated small-to-mid diameter piping manifolds directly to raised-face valves, strainers, instrumentation blocks, and storage vessels.

Frequently Asked Questions (FAQs)

What is the structural difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for slightly higher mechanical loads or vibration profiles compared to a completely flat, hubless plate flange.

Why specify a forged Grade 304 stainless steel flange over cast alternatives?

Forging involves hammering or pressing hot steel into shape, which crushes any micro-voids and forces the internal grain flow to follow the shape of the flange. Sourcing forged flanges ensures vastly superior tensile strength, impact resistance, and pressure-handling capabilities compared to casting alternatives, which can suffer from hidden casting porosities or micro-cracks.

What specific welding configuration is required to install an ASME Slip-On flange?

A slip-on flange requires a double fillet weld configuration for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent damaging the sealing surface during field welding.

When should I select Grade 304 stainless steel over Grade 316L for this product?

Grade 304 is highly economical and excellent for freshwater processing, commercial HVAC, standard food-grade utilities, and clean factory environments. If your pipeline is handling aggressive chemical acids, highly concentrated salt brines, or is installed in an offshore marine recommended to prevent pinhole pitting and weld-zone intergranular corrosion.

Are Material Test Reports (MTRs) provided with these forged flanges from Kriloha?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (including precise Carbon, Chromium, and Nickel content), hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete code traceability.
