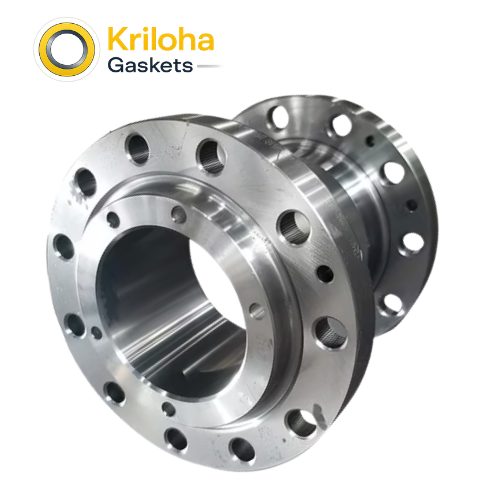

Ansi B16.5 Stainless Steel 316 Class 150Lb Din Standard So Slip-On Flange

At Kriloha Gaskets & Hardware, we recognize that modern processing networks require components that combine premium corrosion resistance with strict geometric compliance. Our Dual-Standard ANSI B16.5 Class 150 / DIN Grade 316 Stainless Steel Forged Slip-On (SO) Flanges represent our engineered answer for “Zero-Leak-Security” and “Deflection-Resistant-Flatness” across critical industrial arrays. As a leading premier manufacturer and supplier of integrated flow control elements and high-performance pipeline hardware, Kriloha utilizes automated multi-axis production workflows to ensure that our flat welding configurations provide superior mechanical longevity.

The engineering of our dual-certified slip-on program is founded on Metallurgical-Purity and Sharp-Geometric-Tolerance. By forcing certified Grade 316 stainless steel stock through controlled forging paths rather than relying on lower-cost casting alternatives, we eliminate internal gas pockets, voids, and structural micro-cracks. The refined metal grain structure smoothly traces the contour of the flange ring and low-profile hub, providing the high structural modulus required to withstand intense bolt-torque demands across the bolt circle without warping or bowing over time. At Kriloha, we precision-machine the sealing face on advanced CNC turning centers, finishing it with controlled phonographic serrations ($R_a$ finish) that mechanically grip the gasket matrix to resist fluid bypass or blowout under sudden system pressure cycles.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Surface Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard metric tube gauges or specific wall-thickness schedules (such as Schedule 10S or Schedule 40S matching). By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior stainless metallurgy and micro-tolerance engineering.

Primary Industrial Applications

Marine Infrastructure & Desalination: Critical, lifetime rust-resistant joints for seawater cooling networks, desalination skids, reverse osmosis water purification blocks, and offshore ballast loops exposed to heavy salt spray.
Chemical Processing & Reagent Transfer: High-reliability connection interfaces for industrial processing loops transporting volatile solvents, organic and inorganic acids, industrial reagents, and corrosive chemical waste.
Hygienic Process Pipelines: Clean-utility networks in pharmaceutical manufacturing, cosmetics packaging, dairy bottling plants, and food/beverage processing where non-porous stainless steel prevents fluid contamination and survives clean-in-place (CIP) steam washdowns.
Water Treatment & Environmental Utilities: High-density flat interfaces for chemical dosing skids, municipal wastewater filtration networks, and corrosive fluid drainage manifolds.
Prefabricated Modular Process Skids: Compact structural connection rings used to integrate prefabricated manifold piping directly to flat-faced or raised-face valves, strainers, inline instruments, and storage vessels.

Frequently Asked Questions (FAQs)

What is the structural difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for slightly higher mechanical loads or vibration profiles compared to a completely flat, hubless plate flange.

How can a single slip-on flange comply with both ANSI Class 150 and DIN standards?

While ANSI (American) and DIN/EN (European) are entirely separate standards, certain nominal mid-bore piping sizes share nearly identical bolt counts, bolt-hole diameters, and pitch circle configurations. By precisely calibration-machining the tolerances, these specific flanges can be dual-certified to meet both standards seamlessly, allowing international operators to cleanly connect cross-border equipment without pressure boundary mismatches.

What specific welding configuration is required to install an ASME Slip-On flange?

A slip-on flange requires a standard double fillet weld setup for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent damaging the sealing surface during field welding.

What is the functional advantage of Grade 316 stainless steel over Grade 304?

While Grade 304 is highly economical and excellent for freshwater and standard atmospheric applications, it can succumb to pitting when exposed to chlorides. Grade 316 contains 2–3% added molybdenum, which significantly elevates its resistance to localized pinhole pitting, stress-corrosion cracking, and chemical acids, making it mandatory for marine, coastal, and harsh chemical process environments.

Are Material Test Reports (MTRs) provided with these dual-standard flanges from Kriloha?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (including precise Carbon, Chromium, Nickel, and Molybdenum content), hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete industrial traceability.
