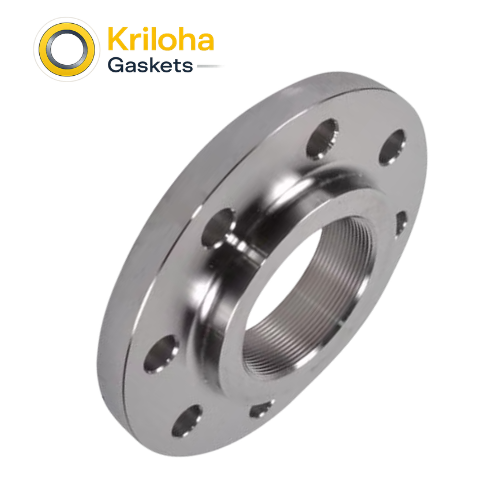

Ansi B16.5 Stainless Steel Class 150 Dn125 Forged So Flange

At Kriloha Gaskets & Hardware, we recognize that modern process networks require a careful balance of physical component compatibility with specialized material performance. Our ASME/ANSI B16.5 Class 150 Forged Stainless Steel 5-Inch / DN125 Slip-On (SO) Flanges represent our engineered answer for “High-Load-Joint-Security” and “Zero-Flexing-Integrity” across diverse process setups. Operating from our advanced automated fabrication facilities, Kriloha utilizes multi-axis CNC tooling to machine exact inner diameter tolerances, ensuring a seamless interface with your pipeline configurations.

The engineering of our stainless slip-on program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. By forcing certified Grade 304L or 316L stainless steel stock through controlled forging paths rather than relying on lower-cost casting alternatives, we completely eliminate internal gas pockets, casting porosities, and structural micro-cracks. The refined metal grain structure smoothly traces the geometry of the ring and low-profile hub collar, providing the high structural modulus required to withstand intense bolt-torque demands across the 8-bolt ANSI circle without warping or undergoing structural relaxation over time. To ensure a tight, leak-proof joint alongside your choice of high-performance gaskets, our automated turning stations finish the specified mating surface with micro-grooved phonographic serrations ( finish) that maximize seal contact and eliminate blowout risks during sudden system pressure cycles.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Surface Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules (such as Schedule 10S or Schedule 40S matching). By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior stainless metallurgy and micro-tolerance engineering.

Primary Industrial Applications

Hygienic Process Pipelines: Clean-utility networks in food processing, large-scale industrial breweries, dairy plants, and pharmaceuticals where smooth, non-porous stainless steel prevents fluid contamination and survives clean-in-place (CIP) steam washdowns.
Chemical Processing & Reagent Transfer: High-reliability connection interfaces for industrial processing loops transporting volatile solvents, organic and inorganic acids, industrial reagents, and corrosive chemical waste.
Marine Infrastructure & Desalination: Critical, lifetime rust-resistant joints for seawater cooling networks, reverse osmosis water purification blocks, shipboard ballast loops, and coastal fuel manifolds exposed to heavy chloride environments (when specified in Grade 316L).
Moderate-Pressure Plant Utilities: Ideal for main factory utility headers distributing industrial water, low-pressure steam, compressed air loop arrays, cooling tower circuits, and non-corrosive gas piping operating under Class 150 parameters.
Modular Industrial Process Skids: Compact structural mounting flanges used by equipment manufacturers to link prefabricated mid-diameter piping manifolds directly to raised-face valves, strainers, inline instruments, and process vessels.

💡 Engineering Dimensional Note

There is a cross-standard terminology pairing in this specification string. ANSI/ASME B16.5 is an imperial standard that classifies dimensions by Nominal Pipe Size (NPS in inches), while DN125 is the metric equivalent layout under European standards (DIN/EN). A DN125 designation corresponds to a 5-inch Nominal Pipe Size (NPS 5).

At Kriloha Gaskets & Hardware, we precision-machine this 5-inch / DN125 configuration with an exact internal clearance bore of 143.8 mm to ensure it slides seamlessly over standard 5-inch outer diameter piping networks.

Frequently Asked Questions (FAQs)

What is the physical measurement equivalent of a DN125 flange under the ANSI B16.5 standard?

Under the ANSI/ASME B16.5 framework, there is no direct fractional metric listing; sizes are designated in Nominal Pipe Size (NPS) inches. A metric DN125 flange scales exactly to a 5-inch ANSI flange. The flange has an outer diameter of 10.00 inches (254 mm) and maps to standard 5-inch nominal pipe outer dimensions (141.3 mm / 5.563 inches).

What is the structural difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for slightly higher mechanical loads or vibration profiles compared to a completely flat, hubless plate flange.

What specific welding configuration is required to install an ASME Slip-On flange?

A slip-on flange requires a standard double fillet weld setup for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent heat or weld spatter from damaging the machined sealing surface during field welding.

When should I select Grade 316L stainless steel over Grade 304L for this product?

Grade 304L is highly economical and excellent for freshwater processing, commercial HVAC loops, standard food-grade utilities, and clean factory environments. If your pipeline is handling aggressive chemical acids, highly concentrated salt brines, or is installed in an offshore marine environment exposed to heavy salt spray, upgrading to Grade 316L (which contains molybdenum) is mandatory to prevent localized pinhole pitting.

Are Material Test Reports (MTRs) provided with these forged flanges from Kriloha?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (including precise Carbon, Chromium, Nickel, and Molybdenum content where applicable), hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete industrial traceability.
