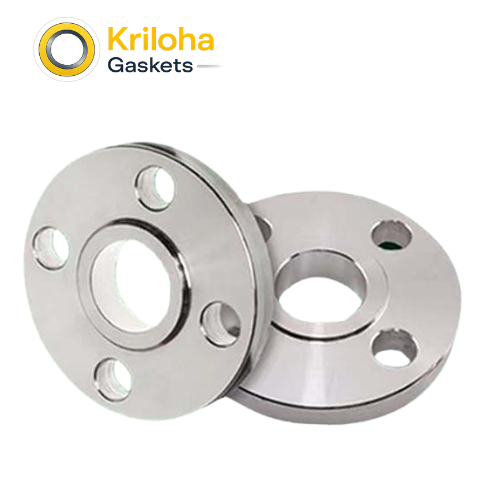

Astm A694 Slip On Flange Dn100 Stainless Steel Forged So Flanges

At Kriloha Gaskets & Hardware, we recognize that severe-service transmission networks demand components that combine high yield strengths with strict dimensional compliance. Our ASTM A694 DN100 High-Yield Forged Slip-On (SO) Flanges represent our engineered answer for “Ultra-High-Tensile-Joint-Security” and “Zero-Flexing-Integrity” across primary high-pressure processing lines. As a leading premier manufacturer and supplier of integrated flow control elements and high-performance pipeline hardware, Kriloha utilizes automated multi-axis production workflows to ensure that our high-yield slip-on configurations deliver superior mechanical longevity over standard commercial grade options.

The engineering of our ASTM A694 slip-on program is founded on Microstructural Uniformity and Severe-Service Performance. Because these components connect critical, high-strength pipelines, Kriloha completely bypasses lower-tier casting methods that can leave behind hidden internal air pockets, micro-voids, or porous defects. Instead, our raw metal stock goes through dense hot-forging paths, forcing the grain structure to follow the exact contour of the low-profile hub and plate ring. This provides the high structural modulus required to comfortably withstand extreme bolt-torque demands across the 4-inch ANSI or metric bolt circle without warping, bowing, or undergoing structural relaxation under high line pressures over time. On our CNC turning stations, we meticulously finish the specified mating face with controlled micro-serrations ($R_a$ finish) that mechanically bite into the gasket matrix to eliminate blowout risks during sudden system pressure spikes.

Manufacturing and provisioning these critical high-grade components involves strict Volumetric Material Inspections, Precision Clearance Calibration, and Surface Roughness Verification. We collaborate directly with your project engineering, quality assurance, and wholesale procurement teams to supply components backed by complete chemical and physical traceability. By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial alliance that prioritizes your system’s lifetime safety through advanced high-yield material science and micro-tolerance engineering.

Primary High-Yield Industrial Applications

Oil & Natural Gas Transmission Pipelines: Heavily specified for high-pressure oil and gas cross-country transmission lines, trunk pipeline manifolds, and mainline gathering stations.
Petrochemical & Refinery severe-Service Loops: High-reliability joint connections for downstream cracking processes, high-pressure gas distribution arrays, and hydrocarbon blending systems.
High-Head Pumping Stations & Compressors: Rugged piping interfaces engineered to easily withstand the rhythmic pulsations, pressure surges, and localized mechanical vibrations of large industrial compressors and pumps.
High-Pressure Utility Steam Networks: Robust flanged connections for secondary high-pressure steam distribution headers, boiler mainlines, and thermal fluid transport lines.
Modular Heavy-Duty Process Skids: Compact structural mounting flanges used to securely link prefabricated high-yield manifolds directly to raised-face valves, strainers, and pressure vessels.

Frequently Asked Questions (FAQs)

What makes an ASTM A694 flange different from a standard ASTM A105 carbon steel flange?

While ASTM A105 is the standard specification for carbon steel piping components in regular ambient and high-temperature utility systems, ASTM A694 is specifically tailored for high-yield transmission service. A694 flanges are alloyed and heat-treated to achieve much higher minimum yield strengths (such as 42,000 PSI up to 70,000 PSI depending on the specific sub-grade), allowing them to match the performance of high-strength line pipes used in the petroleum and gas industries.

What is the fundamental difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for higher mechanical loads, vibrations, or extreme thermal expansion cycles.

What specific welding configuration is required to install an ASTM A694 Slip-On flange?

A slip-on flange requires a standard double fillet weld configuration for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent damaging the sealing surface during field welding.

Why does the product title include both “ASTM A694” and “Stainless Steel”?

While the classic ASTM A694 specification is traditionally associated with high-strength carbon and low-alloy steels, specialty piping projects handling corrosive high-yield lines frequently require dual-certified or modified chemical matrix runs (or structural stainless linings/claddings) that bridge high mechanical yield strengths with stainless-grade corrosion protection. Always verify your exact metallurgical project parameters (such as Grade F42 through F70 parameters) with our technical desk during quotation.

Are Material Test Reports (MTRs) provided with these high-yield DN100 flanges?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every high-pressure or severe-service shipment from our facility is accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions, precise hardness values, yield/tensile strength data, and explicit compliance with international dimensional standards to guarantee complete code traceability.
