Alloy Steel Flange Ansi B16.5 Rf Class 150 Dn 10 Slip On Flange

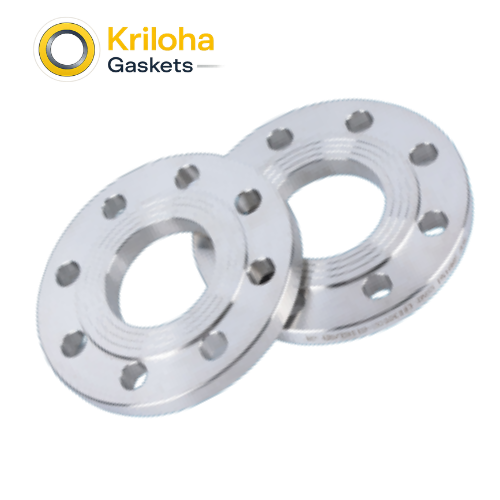

At Kriloha Gaskets & Hardware, we recognize that severe thermal environments demand a masterful combination of advanced material chemistry and precise dimensional execution. Our ASME B16.5 Class 150 Forged Alloy Steel Slip-On Raised Face (SO-RF) Flanges represent our engineered answer for “High-Temperature-Joint-Security” and “Zero-Flexing-Integrity” across aggressive, high-stress processing networks. Operating from our advanced automated fabrication hubs, Kriloha utilizes multi-axis CNC vertical turning lattices and automated drilling stations to ensure that our alloy configurations provide superior mechanical longevity compared to unpredictable cast alternatives.

The engineering of our alloy steel program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. Because these components must handle intense thermal expansion cycles and high line loads, Kriloha completely bypasses lower-grade, unpredictable casting techniques that leave hidden internal air pockets or structural micro-cracks. Instead, we utilize fully certified, high-density hot-forged alloy steel stock. The forging process refines the internal grain flow to follow the structural contour of the low-profile hub and plate ring, giving it the structural modulus required to easily handle intense bolt-torque demands across the bolt circle without warping, bowing, or undergoing mechanical relaxation over time. The Chromium-Molybdenum matrix provides excellent defense against structural hydrogen attack and graphitization at elevated temperatures. At Kriloha, we precision-machine the Raised Face (RF) sealing surfaces, adding controlled concentric phonographic micro-serrations ( finish) that firmly anchor your chosen high-performance gasket to eliminate fluid bypass or blowout risks.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Surface Roughness Calibration. We collaborate directly with your project engineering, quality assurance, and procurement teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules. By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior alloy metallurgy and micro-tolerance engineering.

Industrial Applications

High-Heat Steam Utilities & Power Generation: Ideal for secondary steam distribution headers, boiler feed water monitoring blocks, and high-temperature condensate return lines.
Petrochemical Refineries & Hydrocarbon Loops: Heavy-duty connection joints for hot crude oil processing lines, refinery catalyst recovery blocks, and hydrocarbon cracking manifolds where thermal cycling is common.
Chemical Injection & Sampling Skids: Small-bore (DN10 / 3/8″) utility interfaces used to route corrosion inhibitors, processing reagents, and live sampling fluids directly into larger process streams.
High-Temperature Modular Skids: Compact structural mounting flanges used by equipment manufacturers to securely link prefabricated miniature piping manifolds directly to valves, strainers, and instrumentation blocks.
Thermal Fluid Exchange Networks: Critical connection points along heat transfer fluid loops and thermal oil distribution networks running under continuous thermal stress.

Frequently Asked Questions (FAQs)

What is the fundamental operational advantage of Alloy Steel (like F11 or F22) over standard Carbon Steel?

While Carbon Steel (ASTM A105) is highly economical and excellent for general utility services under 400°C, it experiences a drop in mechanical strength and becomes vulnerable to “creep rupture” and graphitization at higher temperatures. Alloy Steels contain specific amounts of Chromium and Molybdenum, which vastly improve high-temperature tensile strength, oxidation resistance, and long-term structural durability under continuous heat.

What is the structural difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for slightly higher mechanical loads, heavy vibrations, or extreme thermal expansion cycles.

What specific welding configuration is required to install an Alloy Steel Slip-On flange?

A slip-on flange requires a standard double fillet weld configuration for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to protect the raised sealing face from weld spatter and heat distortion during field welding.

Does Alloy Steel require specialized pre-heating or post-weld heat treatment (PWHT)?

Yes, due to the increased hardenability introduced by Chromium and Molybdenum alloys, welding these components typically requires strict adherence to welding codes. This often involves pre-heating the joint before welding and performing Post-Weld Heat Treatment (PWHT) or stress relieving to prevent the formation of brittle microstructures (martensite) and eliminate the risk of hydrogen-induced cracking in the weld zone.

Are Material Test Reports (MTRs) provided with these forged flanges from Kriloha?
