Asme B16.5 A182 F321 So Flange Dn 80 Rf Slip On Flange

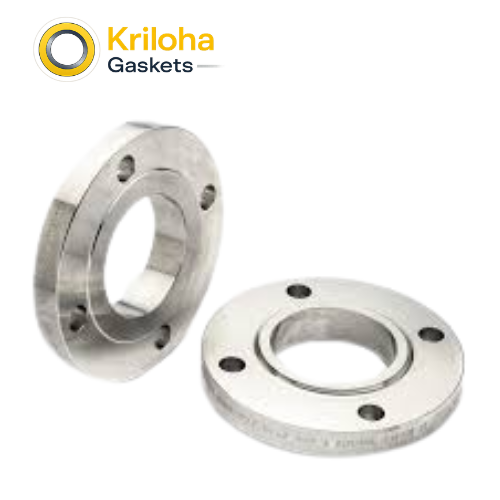

At Kriloha Gaskets & Hardware, we understand that high-temperature process networks demand specialized metallurgy capable of defying thermal deformation and intergranular corrosion. Our ASME B16.5 Grade F321 Forged Stainless Steel DN80 Slip-On (SO) Flanges represent our engineered answer for “High-Thermal-Joint-Security” and “Zero-Flexing-Integrity” under continuous operational stress. Operating from our advanced automated fabrication facilities, Kriloha utilizes multi-axis CNC tooling to machine exact inner diameter tolerances, ensuring a seamless interface with your severe-service pipeline configurations.

The engineering of our Grade F321 stainless slip-on program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. Because these components connect severe-service, high-heat piping, Kriloha completely bypasses lower-grade, cast alternatives prone to internal air pockets or micro-fissures. Instead, we utilize fully certified, high-density hot-forged steel stock. The forging process refines the internal grain structure to follow the structural contour of the low-profile hub and plate ring, giving it the structural modulus required to easily handle intense bolt-torque demands across the 4-bolt or 8-bolt circle without warping or undergoing mechanical relaxation over time. On our CNC turning stations, we meticulously finish the Raised Face (RF) mating face with controlled phonographic serrations ( finish) that anchor high-temperature gaskets firmly in place to eliminate blowout risks during sudden system pressure cycles.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Surface Roughness Calibration. We collaborate directly with your project engineering, quality assurance, and procurement teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules (such as Schedule 10S or Schedule 40S matching). By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior metallurgy and micro-tolerance engineering.

Primary Industrial Applications

High-Temperature Refinery & Chemical Processing: Ideal for fluid transport loops in thermal cracking units, catalyst regeneration lines, and hydrocarbon processing plants operating within the sensitization temperature range.
Exhaust Manifolds & Aerospace Ducting: Critical connection joints for industrial furnace exhaust ducting, gas turbine exhaust manifolds, and high-temperature waste heat recovery units (WHRUs).
Power Plant Steam Utility Infrastructure: High-reliability joint interfaces for superheater steam headers, boiler feed lines, and thermal fluid transport conduits exposed to constant thermal cycling.
Hygienic Process Pipelines: Clean-utility networks in food processing, beverage bottling lines, dairy plants, and cosmetics manufacturing where smooth, non-porous stainless steel prevents fluid contamination and survives clean-in-place (CIP) steam washdowns.
Modular Industrial Process Skids: Compact structural mounting flanges used to securely link prefabricated piping manifolds directly to raised-face valves, strainers, instrumentation blocks, and storage vessels.

Frequently Asked Questions (FAQs)

What makes Grade F321 stainless steel superior to Grades 304 or 316 for high-temperature welding applications?

When standard stainless steels like Grade 304 or 316 are welded or exposed to temperatures between 400°C and 800°C, carbon combines with chromium along the grain boundaries, leaving the steel vulnerable to localized corrosion (sensitization). Grade F321 contains added Titanium, which has a higher affinity for carbon than chromium does. Titanium forms harmless titanium carbides, leaving the chromium distributed uniformly throughout the steel matrix to maintain full corrosion resistance across the heat-affected zone (HAZ).

What is the fundamental difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for slightly higher mechanical loads, heavy vibrations, or extreme thermal expansion cycles.

What specific welding configuration is required to install an ASME F321 Slip-On flange?

A slip-on flange requires a standard double fillet weld setup for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to protect the raised sealing face from weld spatter and heat distortion during field welding.

What are the standardized bolt hole configurations for a DN80 / 3-Inch Class 150 Raised Face flange?

According to the ASME B16.5 Class 150 standard, a 3-inch (DN80) flange features an outer diameter of 7.50 inches (190.5 mm) and a bolt circle diameter of 6.00 inches (152.4 mm). It utilizes 4 bolt holes designed to accommodate 5/8-inch diameter bolts or stud bolts. (Note: Class 300 variants upgrade to 8 bolt holes with larger bolt circles).

Are Material Test Reports (MTRs) provided with these forged flanges from Kriloha?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions (including precise Carbon, Chromium, Nickel, and Titanium content), hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete code traceability.
