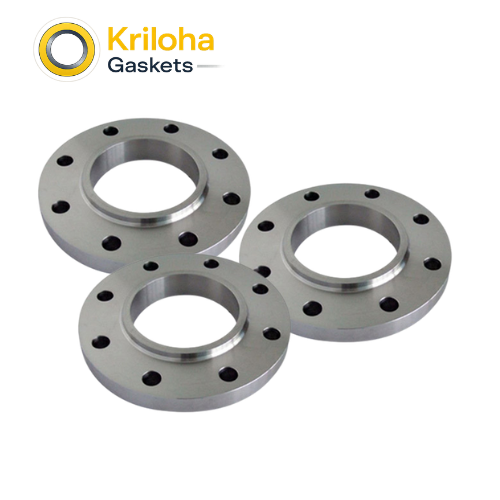

Ansi B16.5 Pn10 Slip On Flanges

At Kriloha Gaskets & Hardware, we recognize that modern fluid networks demand components that seamlessly combine absolute structural rigidity with absolute dimensional compliance. Our Dual-Standard ANSI B16.5 / PN10 Forged Slip-On (SO) Flanges represent our engineered answer for “High-Load-Joint-Security” and “Zero-Flexing-Integrity” across primary processing arrays. As a leading premier supplier of high-performance flow control elements and pipeline interfaces, Kriloha utilizes automated multi-axis production workflows to ensure that our forged slip-on configurations provide superior mechanical longevity compared to unpredictable cast alternatives.

The engineering of our dual-standard slip-on program is founded on Microstructural Uniformity and Deflection-Resistant Flatness. By prioritizing high-density hot-forging over lower-tier casting alternatives, the metal grain structure smoothly traces the contour of the flange ring and low-profile hub. This provides the structural modulus required to withstand intense bolt-torque demands across the bolt circle without bowing, warping, or undergoing structural relaxation over time. Depending on your environment, Kriloha provisions these components in ASTM A105 Carbon Steel (finished with anti-rust lacquer or hot-dip galvanization) or Stainless Steel 304L/316L for premium chemical resistance. At Kriloha, we precision-machine the flat sealing surface and finish them with controlled phonographic serrations ($R_a$ finish) that mechanically grip the gasket matrix to resist blowout under sudden system pressure cycles.

Manufacturing and provisioning these critical high-grade components involves strict Dimensional Tolerance Checks, Volumetric Material Inspections, and Surface Roughness Calibration. We collaborate directly with your project engineering, procurement, and facility maintenance teams to supply precise internal bores tailored to standard pipe outer diameters and unique wall-thickness schedules. By choosing Kriloha Gaskets & Hardware, you are investing in a “Future-Proof” industrial partnership that prioritizes your system’s lifetime reliability through superior metallurgy and micro-tolerance engineering.

Primary Industrial Applications

Moderate-Pressure Plant Utilities: Ideal for primary factory utility lines distributing high-pressure industrial water, cooling tower loops, factory compressed air networks, and inert gas loops.
Municipal Water & Wastewater Distribution: Standard space-saving connection joints for large-scale water treatment headers, municipal pump manifolds, and wastewater filtration networks.
Steam & Condensate Networks: Reliable connection joints for secondary steam utility pipelines, boiler feed lines, and thermal fluid transport lines exposed to elevated thermal cycles.
Oil, Gas & Petroleum Pipelines: Heavy-duty, economical connection joints for non-corrosive hydrocarbon transport, fuel oil distribution networks, oil blending systems, and lubrication oil lines.
Modular Industrial Process Skids: Compact structural flanges used to join prefabricated piping manifolds directly to valves, strainers, filtration pods, and storage vessels.

Frequently Asked Questions (FAQs)

What is the structural difference between a Slip-On (SO) flange and a standard Flat Plate flange?

While both types slide over the pipe outer diameter and utilize double fillet welding, a standard plate flange is completely flat and collarless. A Slip-On flange features a low-profile raised hub or collar surrounding the center bore. This hub provides additional structural reinforcement at the weld zone, helping to distribute pipeline stresses and making it better suited for slightly higher mechanical loads or vibration profiles compared to a completely flat, hubless plate flange.

How can a single flange comply with both ANSI B16.5 and metric PN10 standards?

While ANSI (American) and EN 1092-1/DIN (European) are entirely separate standards, certain nominal mid-bore piping sizes share nearly identical bolt counts, bolt-hole diameters, and pitch circle configurations. By precisely calibration-machining the tolerances, these specific flanges can be dual-certified to meet both standards seamlessly, allowing international operators to cleanly connect cross-border equipment.

What specific welding configuration is required to install an ASME Slip-On flange?

A slip-on flange requires a double fillet weld configuration for proper code-compliant installation:

One robust fillet weld around the exterior where the hub neck meets the outer diameter of the pipe wall.

A secondary fillet weld inside the bore, where the pipe end is slid back slightly (typically equal to the pipe wall thickness plus 3mm) from the flange face to prevent damaging the sealing surface during welding.

How is this carbon steel flange protected against environmental rust during transit and storage?

Because carbon steel is vulnerable to atmospheric oxidation, our high-quality carbon steel flanges come standard with a protective surface treatment. This typically includes a light yellow or black anti-rust lacquer, a rust-preventative oil finish, or hot-dip galvanization depending on your long-term storage and field installation environment requirements.

Are Material Test Reports (MTRs) provided with these forged flanges from Kriloha?

At Kriloha Ltd., quality assurance is completely non-negotiable. Every shipment from our facility can be accompanied by comprehensive Material Test Reports (MTRs) confirming exact chemical compositions, hardness values, yield/tensile strength data, and explicit compliance with international industrial standards to guarantee complete code traceability.
